EarthTek LLC.

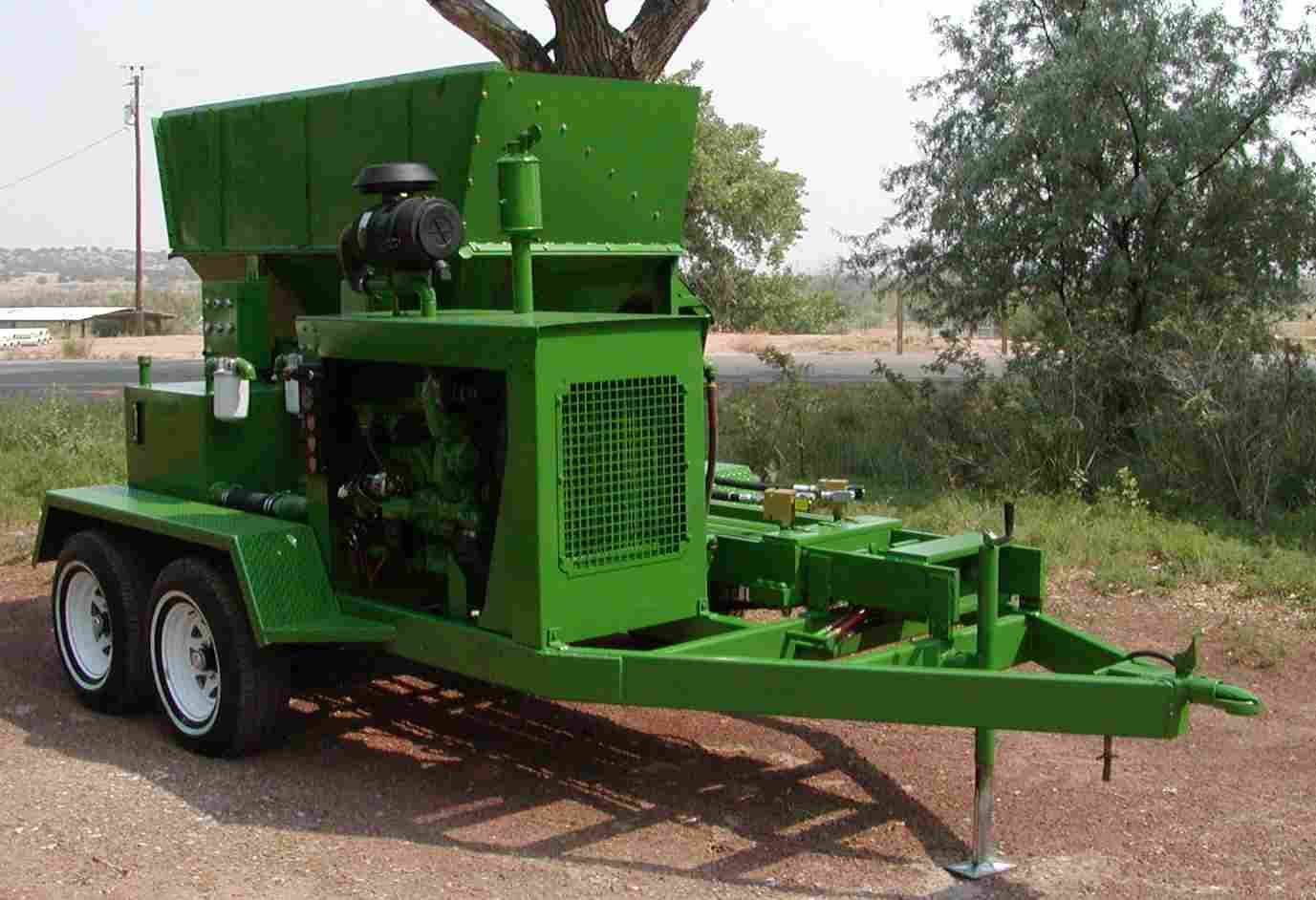

PDA-480-14DP
COMPRESSED EARTH BLOCK MACHINE

Click Here to view this machine in operation!









Click on the pics for a larger view:



PDA-480-14DP

Price: $76,670

This model produces large blocks that are of uniform density with a precise height and length for dry stacking as well as slurry methods of construction.  Blocks can be used immediately after being produced.

This machine eats a lot of dirt! We Highly suggest an Earth Blender for use with this machine.







Production Rate: 480 blocks per hour
Soil Requirement: 10 to 12 Yds (cu. meters) per hour
Block Size 4" x 14" x (12")
(width adjustable to 2" within 30 seconds)

Blocks are pressed from both ends for a uniformly dense sharp cornered diamond block.

Engine 4 cylinder Diesel; 75 HP liquid-cooled diesel engine
Controls Automatic electro-mechanical; available worldwide
Hydraulic Components Vickers, Northman, Lion, Prince; available off-the-shelf
Hydraulic Oil Filtration 10 microns
Pressure to Block Adjustable to 2,350 PSI on the block
Trailer Tandem axle; capable of maintaining highway speeds
Standard Features
  • Replaceable AR-400 mold liner

  • Bulldog forged steel tongue coupler

  • New tires, wheels and axles

  • Walk-on fenders

  • Vibrator

  • Cooler

  • 10' Gravity Roller
